  • Research article
  • Open Access

MRI features of combined hepatocellular- cholangiocarcinoma versus mass forming intrahepatic cholangiocarcinoma

  • 1,
  • 2,
  • 1,
  • 1,
  • 3,
  • 3 and
  • 1Email author
Cancer Imaging201818:8

https://doi.org/10.1186/s40644-018-0142-z

  • Received: 25 September 2017
  • Accepted: 15 February 2018
  • Published:

Abstract

Background

Combined hepatocellular-cholangiocarcinoma (cHCC-CC) is a rare primary liver tumor, which has overlapping imaging features with mass forming intra-hepatic cholangiocarcinoma (ICC) and hepatocellular carcinoma (HCC). Previous studies reported imaging features more closely resemble ICC and the aim of our study was to examine the differential MRI features of cHCC-CC and ICC with emphasis on enhancement pattern observations of gadolinium enhanced MRI.

Methods

Institutional review board approval with consent waiver was obtained for this retrospective bi-centric study. Thirty-three patients with pathologically proven cHCC-CC and thirty-eight patients with pathologically proven ICC, who had pre-operative MRI, were identified. MRI images were analyzed for tumor location and size, T1 and T2 signal characteristics, the presence/absence of: cirrhosis, intra-lesional fat, hemorrhage/hemosiderin, scar, capsular retraction, tumor thrombus, biliary dilatation, degree of arterial enhancement, enhancement pattern, pseudocapsule and washout. Associations between MRI features and tumor type were examined using the Fisher’s exact and chi-square tests.

Results

Strong arterial phase enhancement and the presence of: washout, washout and progression, intra-lesional fat and hemorrhage were all strongly associated with cHCC-CC (P < 0.001). While cHCC-CC had a varied enhancement pattern, the two most common enhancement patterns were peripheral persistent (n = 6) and heterogeneous hyperenhancement with washout (n = 6), compared to ICC where the most common enhancement patterns were peripheral hypoenhancement with progression (n = 18) followed by heterogeneous hypoenhancement with progression (n = 14) (P < 0.001).

Conclusion

The cHCC-CC enhancement pattern seems to more closely resemble HCC with the degree of arterial hyperenhancement and the presence of washout being valuable in differentiating cHCC-CC from ICC. However the presence of washout and progression, in the same lesion or a predominantly peripheral /rim hyperenhancing mass were also seen as important features that should alert the radiologist to the possibility of a cHCC-CC.

Keywords

  • Combined hepatocellular-cholangiocarcinoma
  • Intrahepatic cholangiocarcinoma
  • Biphenotypic tumor
  • Liver MRI
  • Primary liver tumor

Background

Combined hepatocellular-cholangiocarcinoma (cHCC-CC) is a rare primary liver tumor that expresses both biliary and hepatocellular markers on immunohistochemistry. The WHO reclassified cHCC-CC in 2010 into two subgroups: cHCC-CC classical type and cHCC-CC with stem cell features. These tumors must show unequivocal hepatocellular (HCC) and cholangiocarcinoma (ICC) components which have transition zones, thus differentiating cHCC-CC from collision tumors [1].

As cHCC-CC is a rare tumor, only a few studies have looked at prognosis and management of this tumor, with complete tumor resection and lymph node clearance having the best prognosis. Survival rates post resection appear to be worse than HCC and similar to ICC [27], with several studies reporting 5-year survival rates of 16–41.1% for cHCC-CC post-transplant compared to near 70% for HCC patients [811]. There are no accepted transplant criteria for cHCC-CC to date, with previous studies reporting poor outcome post liver transplant for patients with presumed HCC who were found to have cHCC-CC on the explant pathology. As patients can proceed to transplant without histology, pre-operative diagnosis of cHCC-CC is important, but remains challenging, as there is both clinical and radiological overlap in these tumors. cHCC-CC can occur in patients with risk factors for HCC and in patients with risk factors for ICC and due to the heterogeneity of the tumor, cHCC-CC can have overlapping imaging features with HCC and ICC. Tumor markers cannot be relied upon to differentiate, as only just over half of patients in one study had elevated Alpha-fetoprotein (AFP) and/or carbohydrate antigen 19.9 (CA19.9) [1].

Previous studies report imaging features of cHCC-CC appear to more closely resemble ICC and metastasis rather than HCC [1218] and to the best of our knowledge there are only a few studies that have attempted to investigate the MRI features of cHCC-CC [1215]. We performed a step-wise systematic evaluation of MRI examinations of pathologically proven cHCC-CC versus ICC. The aim of our study was to examine the differential MRI features of cHCC-CC and ICC with emphasis on enhancement pattern observations of gadolinium enhanced MRI.

Methods

Patients

Institutional review board approval with consent waiver was obtained for this retrospective bi-centric study. Pathology databases at both centers were searched for consecutive cHCC-CC/biphenotypic tumors between January 2005 and December 2014 and these results were cross-referenced with radiology databases, excluding any patients who did not have preoperative MRI. Over the same period the pathology and radiology databases were searched for ICC cases.

The patient demographics of the two groups are summarized in Table 1. Thirty-three patients who had pathologically proven cHCC-CC and MRI at baseline were identified. Within this cohort, 25 of the patients were male and 8 were female. The mean age was 59.5 years with an age range of 36–82. Twenty-five patients had chronic liver disease: 16 patients had hepatitis B, 9 patients had hepatitis C, 3 patients had a history of alcohol abuse, 1 patient had hemochromatosis, 1 patient had non-alcoholic steatohepatitis and 1 patient had primary biliary cirrhosis. Two of the patients with histories of alcohol excess were also hepatitis C positive and 1 patient had both hepatitis B and hepatitis C positive serology. Twenty-three (69.7%) of the patients had cirrhosis on imaging, defined as lobar redistribution (hypertrophy of the caudate and left lateral segments, with atrophy of the right lobe and left medial segments) and/or nodular hepatic contour.
Table 1

Patient demographics

Parameter

cHCC-CC

Cholangiocarcinoma

Mean age (range)

59.5 (36–82)

61 (32–86)

Sex (M:F)

25:8

20:18

Median AFP (range)

23.5 ng/ml (< 5–353,014)

2 ng/ml (< 5–15)

Median Ca19.9 (range)

25 U/ml (< 1–49)

16.5 U/ml (< 1–129,207)

Hepatitis B

16

7

Hepatitis C

9

3

AFP was recorded for 29 patients pre-treatment and 8 patients had an AFP > 100 ng/ml, with 5 patients in the cohort having an AFP > 400 ng/ml (range < 5–353,014). Only 7 patients had CA19.9 recorded pre-treatment and 4 of those had elevated CA19.9 (> 37 U/ml), with only one greater than twice the normal limit at 125 U/ml. The remaining patients with a positive CA19.9 ranged from 38 to 49 U/ml.

Forty consecutive patients with pathologically proven ICC with MRI at baseline were identified. Two patients were excluded; one as they did not have dynamic contrast enhanced imaging and the other, as the quality of the study was deemed non-diagnostic. Within this cohort there were a similar amount of male and female patients with 20 males and 18 females. The mean age was 61, with an age range of 32–86. Ten patients had risk factors for liver disease, 7 had hepatitis B and 3 had hepatitis C.

AFP was recorded in 24 patients pre-treatment and no patient had an elevated AFP. CA19.9 was recorded in 26 patients pre-treatment and the median CA19.9 was 16.5 U/ml (range < 1–129,207). Seven patients had a CA19.9 > 37 U/ml.

Image acquisition

MRI examinations were performed at 1.5 T or 3 T (n = 63 at 1.5 T and n = 8 at 3 T) using a phased array torso coil. MRI protocol included: T2 single shot turbo spin echo with TE 180, axial T2 turbo spin echo with TE 90, axial T1 volumetric interpolated breath-hold (VIBE) opposed-in phase sequences, axial diffusion weighted imaging and axial T1 VIBE pre-contrast and dynamic post-contrast images (Table 2). The majority of the patients (22 cHCC-CC and 38 ICC) received routine extracellular gadolinium based contrast agent gadobutrol (Gadovist, Bayer Healthcare, Berlin, Germany) at a dose of 0.1 mmol/kg at 1 ml/s. Eleven cases in the cHCC-CC group and 3 cases in the ICC group had imaging with hepatocyte specific contrast agent gadoxetic acid (Primovist, Bayer AG, Germany) at a dose of 0.025 mmol/kg at 1 ml/s. At our institution, the primary contrast agent for initial liver imaging is an extracellular based gadolinium contrast agent, and as this is a retrospective study, only the extracellular phases of contrast imaging were analyzed.
Table 2

MRI parameters

Image sequence

TR (ms)

TE (ms)

NEX

FOV (mm)

ST (mm)

Gap (mm)

Matrix (phase x frequency)

Pre-contrast imaging:

 Axial T2 HASTE SPAIR

1600

90

1

360

5

1

259 × 320

 Axial T2 HASTE SPAIR

1600

180

1

360

5

1

259 × 320

 Axial T1 VIBE opp/in

4.43

1.39–2.49

1

360

3

0

218 × 320

 ep2d diff b100,600

7600

66

6

380

5

0

156 × 192

 T1 VIBE axial SPAIR

4.19

1.47

1

300

3

0

195 × 320

Post-contrast imaging:

 T1 VIBE axial SPAIR dynamic: arterial (care bolus trigger), venous (45–60 s) and interstitial phase (90–120 s)

4.19

1.47

1

300

3

0

195 × 320

 T1 VIBE axial SPAIR 5-min delay

4.19

1.47

1

300

3

0

195 × 320

aPost-contrast Primovist:



 T1 VIBE axial SPAIR 20 min

4.37

1.47

1

300

4

0

195 × 320

 T1 VIBE axial SPAIR 20 min

4.19

1.47

1

300

1.5

0

202 × 320

aIf hepatocyte specific contrast agent (gadoxetic acid) used

Image analysis

Two abdominal radiologists (one abdominal imaging fellow and one faculty with 15 years subspecialty MRI experience) retrospectively reviewed the studies in consensus. Images were reviewed on a picture archive communication system. The following characteristics were evaluated: tumor location and size, T1 and T2 signal characteristics, the presence/absence of: cirrhosis on imaging, intra-lesional fat, hemorrhage/hemosiderin, scar, capsular retraction, tumor thrombus, biliary dilatation, degree of arterial enhancement, enhancement pattern on arterial portal-venous and delayed (5 min) phases, pseudocapsule and washout. T2 intermediate signal intensity was defined as the same signal intensity as the spleen and T2 hyperintense lesions were defined as being of higher signal intensity than the spleen. Capsular retraction was recorded for peripheral tumors, which we defined as being within 1 cm of the liver capsule. The degree of arterial enhancement was defined as being strong if any part of the lesion showed similar enhancement to the aorta, mild to moderate if the enhancement was less than the aorta and absent if there was no arterial enhancement. For the overall enhancement pattern, lesions were characterized as being associated with washout even if there was an area of progressive enhancement in the same lesion as our main aim of this study was comparing cHCC-CC to ICC. Lesions with both washout and progression were captured separately. Lesions were defined as having peripheral enhancement patterns, rather than heterogeneous enhancement patterns, if there was peripheral (< 1 cm depth) enhancement on the arterial or venous phase (in lesions that were hypoenhancing on arterial phase). If there was any central enhancement these lesions were characterized as a heterogeneous enhancement pattern. Evidence of cirrhosis included a lobulated/nodular contour and/or volume redistribution to the left lobe and caudate.

Statistical analysis

Descriptive statistics (frequencies, percentage, mean) were used to summarize demographics, clinical history and MRI features, by tumor type. Associations between MRI features and tumor type were examined using the Fisher’s exact and chi-square tests. All tests were two sided, and p < 0.05 was considered an indicator of a statistically significant association. Statistical analyses were performed using SPSS software (version 20.0, IBM).

Results

The MRI features of cHCC-CC and ICC are summarized in Table 3. On T1 the majority of the lesions were homogenously hypointense in the cHCC-CC and ICC groups, 23/33 and 30/38 respectively. On T2, the majority of the cHCC-CC group (23/33), had a homogenous intermediate/hyperintense appearance. In the ICC group, 14/38 had heterogeneous signal intensity on T2, 12/38 had homogenous intermediate/hyperintense appearance and peripheral hyperintensity with a central hypointense region was seen in 9/38.
Table 3

MRI characteristics of cHCC-CC and ICC

Parameter

cHCC-CC

Cholangiocarcinoma

P-value

T1 WI



 Hypointense

23

30

0.37

 Heterogeneous

9

5

0.136

 Isointense/not seen

1

3

0.375

T2 WI



 Homogenously intermediate/hyperintense

23

12

0.001

 Peripheral hyperintensity and central hypointensity

3

9

0.102

 Heterogeneous

7

14

0.15

 Isointense/not seen

0

3

0.99

Intralesional fat

2

0

0.124

Intralesional hemorrhage

4

1a

0.119

Capsular retractionb

3/23 (13%)

13/21 (62%)

< 0.001

Cirrhosis on imaging

23

0

< 0.001

Biliary dilatation

5

23

< 0.001

Tumor thrombus

3

0

0.058

aThis patient had recently had a percutaneous biopsy

bRecorded for lesions within 1 cm of the liver capsule

Two patients in the cHCC-CC group had intra-lesional fat and 4 patients in the cHCC-CC group had intra-lesional hemorrhage. No patient in the ICC cohort had intra-lesional fat. One patient in the ICC cohort had evidence of intra-lesional hemorrhage, however this patient had a percutaneous biopsy three days prior to the MRI. Excluding the post biopsy patient in the ICC group, both intra-lesional fat and intra-lesional hemorrhage are highly specific (100%) for cHCC-CC versus ICC, although they have poor sensitivities (6% {95% CI: -2 to 14%} and 12% {95% CI: 1–23%} respectively).

In the cases of peripherally located tumors, 13/21 in the ICC group showed capsular retraction compared to 3/23 in the cHCC-CC group (P < 0.001).

The presence of biliary dilatation associated with the mass was seen in 5 of the cHCC-CC group and 23 of the ICC group, P-value of less than 0.001. Portal vein tumor thrombus was seen in 3 of the cHCC-CC group compared to 0 in the ICC group.

The enhancement characteristics of cHCC-CC and ICC are summarized in Table 4. Arterial enhancement was seen in 90.9% (n = 30) of the cHCC-CC group compared to 57.9% (n = 22) of the ICC group. The degree of arterial enhancement in 15 patients in the cHCC-CC group was similar to the degree of enhancement of the aorta (strong) and in the remaining 15 patients it was less intense (mild to moderate) than the aorta, compared to 1 and 22, respectively in the ICC group (P < 0.001; strong arterial enhancement). Peripheral rim enhancement on the arterial phase was seen in 14 cases in both the cHCC-CC group and the ICC group.
Table 4

Enhancement characteristics of cHCC-CC and ICC

Parameter

Combined HCC/CC

Cholangiocarcinoma

P value

Degree of arterial enhancement

Strong: 15/33

Strong: 1/38

< 0.001

Mild: 15/33

Mild: 22/38

0.295

Hypo: 3/33

Hypo: 15/38

0.003

Peripheral rim arterial enhancement

14 (42%)

14 (37%)

0.631

Progression

13 (39%)

33 (87%)

< 0.001

Washout

13 (39%)

0

< 0.001

Washout and Progression

3 (9%)

0

0.058

With regards to the overall enhancement characteristics of the lesions, the most common enhancement patterns in the cHCC-CC group were peripheral persistent (n = 6) (Fig. 1) and heterogeneous hyperenhancement with washout (n = 6). The most common enhancement pattern in the ICC group was peripheral hypoenhancement with progression (n = 18) followed by heterogeneous hypoenhancement with progression (n = 14) (Fig. 2). Combining peripheral hypoenhancement with progression, heterogeneous hypoenhancement with progression and hypoenhancement versus the other subgroups, there was a statistically significant difference between the ICC and cHCC-CC groups. 79% of the patients who had either one of these three enhancement patterns had ICC and 89% of the patients in the other category had cHCC-CC (P < 0.001).
Fig. 1
Fig. 1

Pathologically proven cHCC-CC with peripheral persistent enhancement: There is a T2 hyperintense (a) lesion in segment 8/4A of the liver, which demonstrates peripheral arterial hyperenhancement (b). The enhancement pattern remains peripheral on both the portal venous and delayed phases (c & d). This enhancement pattern (peripheral persistent) was one of the most common enhancement patterns of cHCC-CC seen in our cohort

Fig. 2
Fig. 2

Pathologically proven cHCC-CC with peripheral progressive enhancement: There is a large mass, which is predominantly intermediate signal on T2-WI (a) in segment 8 of the liver. This demonstrates peripheral arterial hyperenhancement (b), but then shows progressive enhancement on the portal venous and delayed phases (c & d) demonstrating enhancement pattern similar to that seen in mass forming ICC

Progressive enhancement was seen in 13 of the cHCC-CC group and 33 of the ICC group (P < 0.001). Washout was seen in 13 of the cHCC-CC group and in 0 of the ICC group (P < 0.001), with a sensitivity of 39% (95% CI: 23–56%) and specificity of 100% in differentiating cHCC-CC from ICC. Both washout and progression were seen in the same tumor in 3 cases in the cHCC-CC group.

Three patients in the cHCC-CC cohort also had a separate mass characteristic of HCC on their MRI. In two of these cases, the cHCC-CC tumors had similar imaging characteristics to the foci of HCC within the same liver, in that they demonstrated arterial hyperenhancement and washout. In one case, the cHCC-CC and HCC were both over 4 cm in diameter and in this case the cHCC-CC was relatively hypovascular compared to the HCC and it did not contain fat, unlike the HCC. The HCC demonstrated washout, but the cHCC-CC did not (Fig. 3). In two other cases, separate 1–2 cm foci of HCC were identified on the explanted liver, but not detected on pre-operative imaging.
Fig. 3
Fig. 3

cHCC-CC (long arrow) and HCC (short dashed arrow) in the same liver; show similar T2-WI imaging characteristics (a). However the HCC tumor shows intra-lesional fat on in-opposed phased subtraction image (b), arterial phase hyper enhancement (c) and washout (d) compared to the cHCC-CC tumor, which shows no internal fat (b) heterogeneous arterial enhancement (c) and no washout (d). The presence of two different enhancement patterns in similar sized lesions in the same liver should prompt biopsy to confirm that both are HCC as cHCC-CC can occur in the same liver as HCC given the overlap of risk factors

Discussion

Few studies have been published evaluating the imaging features of cHCC-CC, with most of the earlier studies using the Allen and Lisa or Goodman classifications, which include collision tumors. As mentioned previously most studies report similar imaging characteristics to ICC [1219]. However, the enhancement characteristics of cHCC-CC in our study appear to more closely resemble HCC rather than ICC, with 13/33 patients in the cHCC-CC cohort having a typical HCC enhancement pattern (arterial enhancement and washout). This may be partly explained by the demographics of our population. In our study the prevalence of cirrhosis (69.7%) and positive hepatitis serology (hepatitis B: 48% and hepatitis C: 27%) in the cHCC-CC cohort is greater than previously reported North American studies [14, 20, 21], where patient demographics and the presence of chronic liver disease risk factors resembled those of ICC rather than HCC. However, some of the earlier studies of cHCC-CC are in Asian populations and these studies report demographics, risk factors and survival similar to HCC [13, 2224]. One European study suggests that the risk factors of the cHCC-CC population lie in between the HCC and ICC groups, but continued to report a male predominance [25]. The differences in our group compared to previously published North American studies could be explained by the increasing Asian population in Canada, higher prevalence of chronic liver disease and increasing incidence of liver cancer [26].

There were also other features associated with HCC in the cHCC-CC group: n = 2 had intra-lesional fat and n = 4 had intra-lesional hemorrhage. While these features are highly specific in differentiating cHCC-CC from ICC, the low sensitivity does not help in differentiating cHCC-CC from ICC. In 3 cases of cHCC-CC there was both washout and progression in the same lesion (Fig. 4), which does differentiate cHCC-CC from ICC, as washout is not seen in ICC. These features can be seen in scirrhous HCC, but this should alert the radiologist to the possibility of a cHCC-CC tumor and consideration for biopsy as the potential treatment options for these two tumors vary [27, 28].

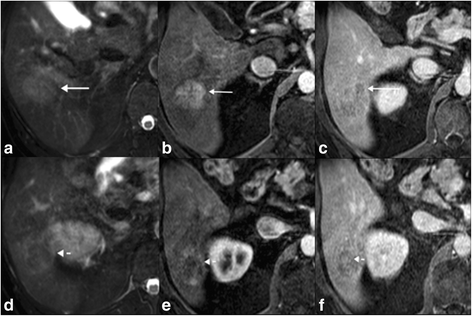

Fig. 4
Fig. 4

Pathologically proven cHCC-CC tumor demonstrating both washout and progression: a-c is the superior aspect of the tumor and d-f is the more inferior aspect of the tumor. The superior portion of the tumor is T2 intermediate (a) and shows show arterial hyperenhancement and washout (b, c), typical of HCC. However the more inferior component of the tumor has some internal T2 hypointense components (d), and relatively hypovascular on the arterial phase (e) and shows some progression of enhancement on the delayed phase (f). The presence of washout and progression in the same lesion should alert the radiologist to the possibility of a cHCC-CC tumor

Previous studies have reported that tumor markers can be helpful in raising the possibility of a cHCC-CC tumor, where both CA19.9 and AFP can be elevated [4, 14, 29, 30]. In our cHCC-CC cohort, AFP was recorded for 29 patients pre-treatment with 8 patients having an AFP > 100 ng/ml and 7 patients had CA19.9 recorded pre-treatment, with 4 of those patients having an elevated CA19.9. While the midrange elevation of AFP helps differentiate these tumors from ICC, there was only one patient who had a CA19.9 above twice the upper limit of normal. This could partially be due to limited sampling in these patients, as the presumptive diagnosis was HCC in the setting of cirrhosis and cHCC-CC was a post resection/explant or post biopsy diagnosis. With previous studies reporting low to mid-level elevation of CA19.9, it does raise an argument for routine CA19.9 testing in patients who have a liver mass as this would alert the radiologist to the possible presence of a cHCC-CC tumor and prompt biopsy, to aid in a pre-treatment diagnosis.

Our study has several limitations, including that this is a retrospective study and the readers were aware the cohort comprised of cHCC-CC and ICC, even though specific pathological diagnosis was not known at the time of image review. Our study group is also small, with only 33 patients in the cHCC-CC group, however this is attributable to the rare nature of this tumor. Despite this, our population for MRI is larger than most other published studies. Another limitation is the absence of histological quantification of HCC and ICC components in the cHCC-CC tumors as not all cases went to resection.

Conclusion

Pre-operative imaging diagnosis of cHCC-CC tumors remains a challenge. In our study, cHCC-CC tumors displayed predominant arterial hyperenhancement pattern and the presence of washout, similar to HCC, perhaps due to a population with a high prevalence of HCC risk factors. We found that the presence of washout; washout and progression in the same lesion; intra-lesional fat and intra-lesional hemorrhage help differentiate cHCC-CC from ICC.

Abbreviations

AFP:

Alpha-fetoprotein

CA19.9:

Carbohydrate antigen 19.9

cHCC-CC:

Combined hepatocellular-cholangiocarcinoma

HCC:

Hepatocellular carcinoma

ICC:

Intra-hepatic cholangiocarcinoma

MRI:

Magnetic resonance imaging

Declarations

Acknowledgements

N/A

Funding

No funding was provided for this study.

Availability of data and materials

The datasets used and/or analyzed during the current study are available from the corresponding author on reasonable request.

Authors’ contributions

JS and KJ analyzed and interpreted the images. JS is the primary author. KJ and BT critically reviewed the paper and revised it. HH and SL performed the database search and literary review. HH and SL also contributed to the primary draft of the manuscript. SF did the pathology review and analysis. RM performed the statistical analysis. All authors read and approved the final manuscript.

Ethics approval and consent to participate

Institutional review board approval with consent waiver was obtained for this retrospective bi-centric study.

Consent for publication

Images are entirely unidentifiable and there are no details on individuals reported within the manuscript.

Competing interests

The authors declare that they have no competing interests.

Publisher’s Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Open Access This article is distributed under the terms of the Creative Commons Attribution 4.0 International License (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made. The Creative Commons Public Domain Dedication waiver (http://creativecommons.org/publicdomain/zero/1.0/) applies to the data made available in this article, unless otherwise stated.

Authors’ Affiliations

(1)
Toronto Joint Department of Medical Imaging, University Health Network, Sinai Health System and Women’s College Hospitals, University of Toronto, Toronto, Canada
(2)
Department of Pathology, University Health Network, University of Toronto, Toronto, Canada
(3)
Department of Radiology, Mount Sinai New York, New York, USA

References

  1. Yin X, Zhang B-H, Qiu S-J, Ren Z-G, Zhou J, Chen X-H, et al. Combined hepatocellular carcinoma and cholangiocarcinoma: clinical features, treatment modalities, and prognosis. Ann Surg Oncol. 2012;19(9):2869–76. http://www.springerlink.com/index/10.1245/s10434-012-2328-0.View ArticlePubMedGoogle Scholar
  2. Koh KC, Lee H, Choi MS, Lee JH, Paik SW, Yoo BC, et al. Clinicopathologic features and prognosis of combined hepatocellular cholangiocarcinoma. Am J Surg. 2005;189(1):120–5. http://linkinghub.elsevier.com/retrieve/pii/S0002961004004799.View ArticlePubMedGoogle Scholar
  3. Lee WS, Lee KW, Heo JS, Kim SJ, Choi SH, Kim YI, et al. Comparison of combined hepatocellular and cholangiocarcinoma with hepatocellular carcinoma and intrahepatic cholangiocarcinoma. Surg Today. 2006;36(10):892–7.View ArticlePubMedGoogle Scholar
  4. Kassahun WT, Hauss J. Management of combined hepatocellular and cholangiocarcinoma. Int J Clin Pract. 2008;62(8):1271–8. http://onlinelibrary.wiley.com/doi/10.1111/j.1742-1241.2007.01694.x/abstract.View ArticlePubMedGoogle Scholar
  5. Chi M, Mikhitarian K, Shi C, Goff LW. Management of combined hepatocellular-cholangiocarcinoma: a case report and literature review. Gastrointest Cancer Res. 2012;5(6):199–202. http://www.pubmedcentral.nih.gov/articlerender.fcgi?artid=3533848&tool=pmcentrez&rendertype=abstract.PubMedPubMed CentralGoogle Scholar
  6. Zuo H-Q, Yan L-N, Zeng Y, Yang J-Y, Luo H-Z, Liu J-W, et al. Clinicopathological characteristics of 15 patients with combined hepatocellular carcinoma and cholangiocarcinoma. Hepatobiliary Pancreat Dis Int. 2007;6(2):161–5. http://www.ncbi.nlm.nih.gov/pubmed/17374575.PubMedGoogle Scholar
  7. Lee J-H, Chung GE, Yu SJ, Hwang SY, Kim JS, Kim HY, et al. Long-term prognosis of combined hepatocellular and cholangiocarcinoma after curative resection comparison with hepatocellular carcinoma and cholangiocarcinoma. J Clin Gastroenterol. 2011;45(1):69–75. http://www.ncbi.nlm.nih.gov/pubmed/20142755.PubMedGoogle Scholar
  8. Garancini M, Goffredo P, Pagni F, Romano F, Roman S, Sosa JA, et al. Combined hepatocellular-cholangiocarcinoma: a population-level analysis of an uncommon primary liver tumor. Liver Transpl. 2014;20(8):952–9. http://www.ncbi.nlm.nih.gov/pubmed/24777610.View ArticlePubMedGoogle Scholar
  9. Sapisochin G, Fidelman N, Roberts JP, Yao FY. Mixed hepatocellular cholangiocarcinoma and intrahepatic cholangiocarcinoma in patients undergoing transplantation for hepatocellular carcinoma. Liver Transpl. 2011;17(8):934–42. http://www.ncbi.nlm.nih.gov/pubmed/21438129.View ArticlePubMedGoogle Scholar
  10. Panjala C, Senecal DL, Bridges MD, Kim GP, Nakhleh RE, Nguyen JHH, et al. The diagnostic conundrum and liver transplantation outcome for combined hepatocellular-cholangiocarcinoma. Am J Transplant. 2010;10(5):1263–7. http://doi.wiley.com/10.1111/j.1600-6143.2010.03062.x.View ArticlePubMedGoogle Scholar
  11. Sapisochin G, de Lope CR, Gastaca M, de Urbina JO, López-Andujar R, Palacios F, et al. Intrahepatic cholangiocarcinoma or mixed hepatocellular-cholangiocarcinoma in patients undergoing liver transplantation: a Spanish matched cohort multicenter study. Ann Surg. 2014;259(5):944–52. http://www.ncbi.nlm.nih.gov/pubmed/24441817.View ArticlePubMedGoogle Scholar
  12. de Campos ROP, Semelka RC, Azevedo RM, Ramalho M, Heredia V, Armao DM, et al. Combined hepatocellular carcinoma-cholangiocarcinoma: report of MR appearance in eleven patients. J Magn Reson Imaging. 2012;36(5):1139–47. http://doi.wiley.com/10.1002/jmri.23754.View ArticlePubMedGoogle Scholar
  13. Hwang J, Kim YK, Park MJ, Lee MH, Kim SH, Lee WJ, et al. Differentiating combined hepatocellular and cholangiocarcinoma from mass-forming intrahepatic cholangiocarcinoma using gadoxetic acid-enhanced MRI. J Magn Reson Imaging. 2012;36(4):881–9.View ArticlePubMedGoogle Scholar
  14. Fowler KJ, Sheybani A, Parke R a., Doherty S, Brunt EM, Chapman WC, et al. Combined hepatocellular and cholangiocarcinoma (biphenotypic) tumors: imaging features and diagnostic accuracy of contrast-enhanced CT and MRI. Am J Roentgenol 2013;201(2):332–339.Google Scholar
  15. Potretzke TA, Tan BR, Doyle MB, Brunt EM, Heiken JP, Fowler KJ. Imaging features of biphenotypic primary liver carcinoma (hepatocholangiocarcinoma) and the potential to mimic hepatocellular carcinoma: LI-RADS analysis of CT and MRI features in 61 cases. AJR Am J Roentgenol. 2016;207:1–7.View ArticleGoogle Scholar
  16. Akoi K, Takayasu K, Kawano T, Muramatsu Y, Moriyama N, Wakao F, et al. Combined hepatocellular carcinoma and cholangiocarcinoma: clinical features and computed tomographic findings. Hepatology. 1993;18(5):1090–5.View ArticleGoogle Scholar
  17. Jeon T, Kim S, Lee W, Lim H. The value of gadobenate dimeglumine-enhanced hepatobiliary-phase MR imaging for the differentiation of scirrhous hepatocellular carcinoma and cholangiocarcinoma with or without hepatocellular carcinoma. Abdom Imaging. 2010;35(3):337–45. http://resolver.scholarsportal.info/resolve/09428925/v35i0003/337_tvogdhcwowhc.xml.View ArticlePubMedGoogle Scholar
  18. Wells ML, Venkatesh SK, Chandan VS, Fidler JL, Fletcher JG, Johnson GB, et al. Biphenotypic hepatic tumors : imaging findings and review of literature. Abdom Imaging. 2015;40(7):2293–305. https://doi.org/10.1007/s00261-015-0433-9.
  19. Allen RA, Lisa JR. Combined liver cell and bile duct carcinoma. Am J Pathol. 1949;25:647–55.PubMedPubMed CentralGoogle Scholar
  20. Jarnagin WR, Weber S, Tickoo SK, Koea JB, Obiekwe S, Fong Y, et al. Combined hepatocellular and cholangiocarcinoma. Cancer. 2002;94(7):2040–6. http://doi.wiley.com/10.1002/cncr.10392.View ArticlePubMedGoogle Scholar
  21. Bhagat V, Javle M, Yu J, Agrawal A, Gibbs JF, Kuvshinoff B, et al. Combined hepatocholangiocarcinoma: case-series and review of literature. Int J Gastrointestinal Cancer. 2006;37(1):27–34.View ArticleGoogle Scholar
  22. Yano Y, Yamamoto J, Kosuge T, Sakamoto Y, Yamasaki S, Shimada K, et al. Combined hepatocellular and cholangiocarcinoma : a clinicopathologic study of 26 resected cases. Jpn J Clin Oncol. 2003;33(6):283–7.View ArticlePubMedGoogle Scholar
  23. Park HS, Bae JS, Jang KY, Lee JH, Yu HC, Jung JH, et al. Clinicopathologic study on combined hepatocellular carcinoma and cholangiocarcinoma: with emphasis on the intermediate cell morphology. J Korean Med Sci. 2011;26(8):1023. http://synapse.koreamed.org/DOIx.php?id=10.3346/jkms.2011.26.8.1023.View ArticlePubMedPubMed CentralGoogle Scholar
  24. Lee SD, Park S-J, Han S-S, Kim SH, Kim Y-K, Lee S-A, et al. Clinicopathological features and prognosis of combined hepatocellular carcinoma and cholangiocarcinoma after surgery. Hepatobiliary Pancreat Dis Int. 2014;13(6):594–601. http://www.hbpdint.com/CN/abstract/abstract4238.shtml.View ArticlePubMedGoogle Scholar
  25. Cazals-hatem D, Rebouissou S, Bioulac-sage P, Bluteau O, Franco D, Belghiti J, et al. Clinical and molecular analysis of combined hepatocellular-cholangiocarcinomas. J Hepatol. 2004;41:292–8.View ArticlePubMedGoogle Scholar
  26. Jiang X, Pan SY, De Groh M, Liu S, Morrison H. Increasing incidence in liver cancer in Canada, 1972–2006: age-period-cohort analysis. J Gastrointest Oncol. 2011;2(4):223–31.PubMedPubMed CentralGoogle Scholar
  27. Kim SH, Lim HK, Lee WJ, Choi D, Park CK. Scirrhous hepatocellular carcinoma: comparison with usual hepatocellular carcinoma based on CT-pathologic features and long-term results after curative resection. Eur J Radiol. 2009;69(1):123–30. http://www.ejradiology.com/article/S0720048X07004676/fulltext.View ArticlePubMedGoogle Scholar
  28. Chung YE, Park M-S, Park YN, Lee H-J, Seok JY, Yu J-S, et al. Hepatocellular carcinoma variants: radiologic-pathologic correlation. AJR Am J Roentgenol. 2009;193(1):W7–13. http://www.ajronline.org/doi/full/10.2214/AJR.07.3947.View ArticlePubMedGoogle Scholar
  29. Maximin S, Ganeshan DM, Shanbhogue AK, Dighe MK, Yeh MM, Kolokythas O, et al. Current update on combined hepatocellular-cholangiocarcinoma. Eur J Radiol Open. 2014;1:40–8. http://linkinghub.elsevier.com/retrieve/pii/S2352047714000021.View ArticlePubMedPubMed CentralGoogle Scholar
  30. O’Connor K, Walsh JC, Schaeffer DF. Combined hepatocellular-cholangiocarcinoma (cHCC-CC): a distinct entity. Ann Hepatol. 2014;13(3):317–22.PubMedGoogle Scholar
